Automatic doy bag packing solution for 25-500gram nuts
Machine introduction:

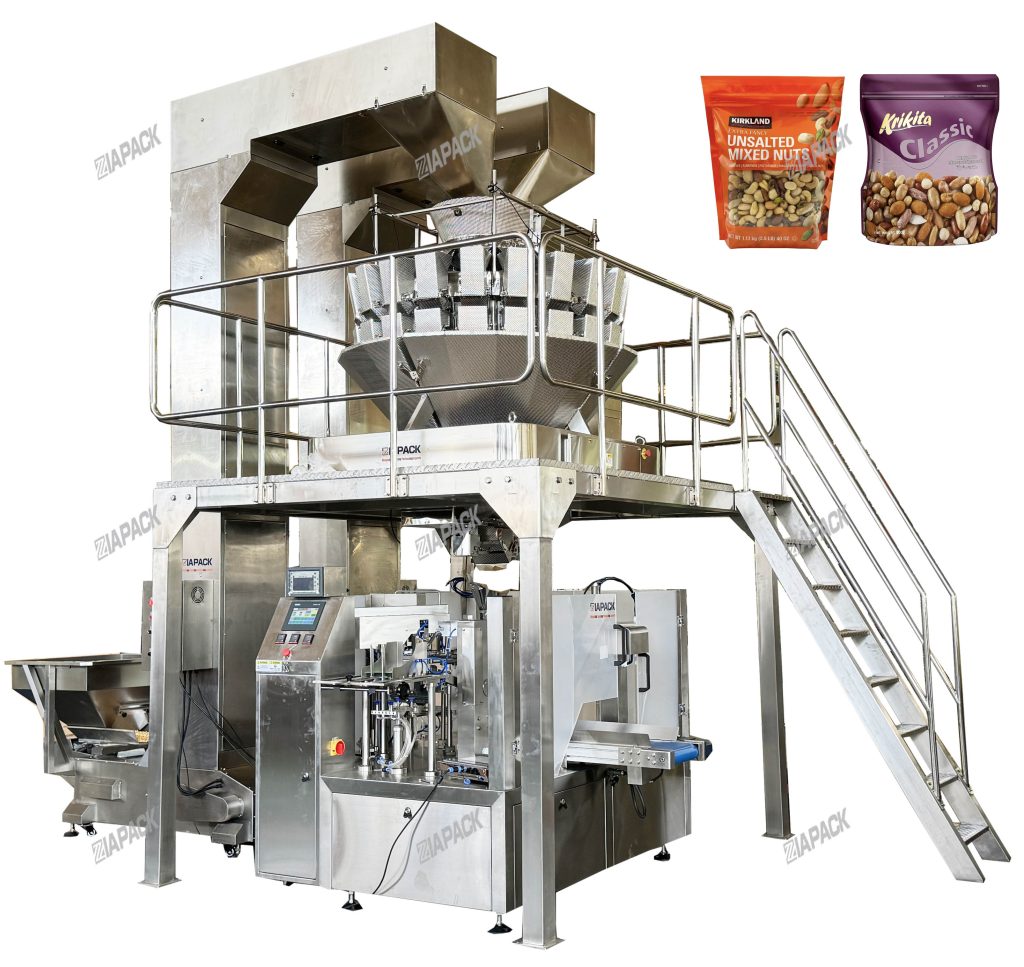

This unit machine including one set ZL20-1.6L multi heads weighing machine for weighing two different product, one set ZL8-230 rotary bag taking opening filling sealing machine, one set DT5 bucket elevator and one set safety platform and ladder. The main machine are control by siemens PLC and operate by touch screen .Adopt famous Electrical accessories. High automation and easy to operate. Widely use by the different industry like Daily chemical, food, chemical, and etc.
Machine details:
1, Model of ZL8-230 Rotary packing machine(doy packer with zipper)
Function and characteristics
1, Lehtë për t'u përdorur, miratoni PLC të avancuar nga Siemens, kombinoni me ekranin me prekje dhe sistemin e kontrollit elektrik, ndërfaqja njeri-makinë është miqësore.
2、Konvertimi i frekuencës rregullon shpejtësinë: kjo makinë përdor pajisje të konvertimit të frekuencës, mund të rregullohet brenda intervalit sipas nevojave të realitetit në prodhim
3, Kontrolli automatik: nuk ka gabim hapjeje qese ose qese, pa mbushje, pa vulë. çanta mund të përdoret përsëri, shmangni humbjen e materialeve të paketimit dhe lëndëve të para.
4, Pajisja e sigurisë: Ndalimi i makinës në presion jonormal të ajrit, alarmi i shkyçjes së ngrohësit.
5, Gjerësia e çantave mund të rregullohet me motor elektrik. Shtypja e butonit të kontrollit mund të rregullojë gjerësinë e kapëseve, të funksionojë lehtësisht dhe të kursejë kohë.
6, Mund të përputhet me derën e sigurisë së xhamit. Në të njëjtën kohë, mund të parandalojë pluhurin.
7, Përdorni kushinetën plastike, nuk keni nevojë të vendosni vaj, më pak ndotje.
8, Mos përdorni pompë vakum vaji, shmangni ndotjen e mjedisit në prodhim.
9、The packing materials loss low, what this machine is used the preformed bag, the bag pattern is perfect and has a high quality of the sealing part, this improved the product specification
10、Product or packing bag contact parts adopt stainless steel or other materials which accord with the food hygienic requirements, guarantee hygiene and security of the food
11、With different feeders changed to pack solid, liquid, thick liquid, powder and so on
12、The packing bag suits in extensive range, suit for multi-layer compound, monolayer PE , PP and so on
Preformed bag made by film and paper.
specifikimet
model | ZL8-230 |
Pozicioni i punës | tetë vende pune |
Materiale qese | Laminated film |
Modeli i qeseve | Doy packer with zipper ,pillow bag |
Madhësia e qese | W:100-230mm L:150-350mm |
shpejtësi | 10-35pouches/min(The speed depends on the product status and filling weight)) |
peshë | 1400 kg |
tension | 380V 3faza 50HZ / 60HZ |

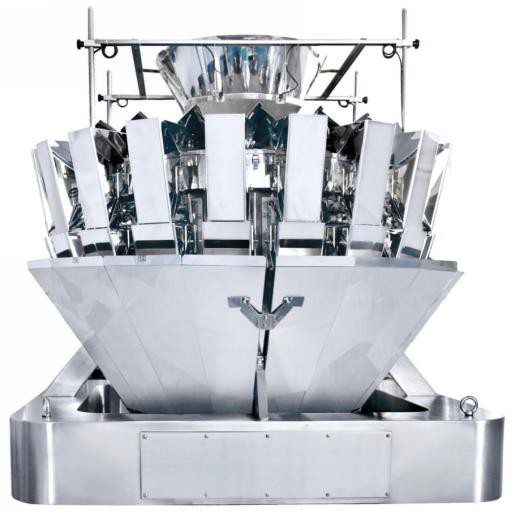

ZL20-2.5L multiheads combination weighing machine
Fusha e aplikimit:
It is suitable for high-speed weighing of a single material, formula mixing of multiple materials: the longest material is 60mm, and the single material is less than 60g, such as instant oatmeal and mixed nuts.
Features:
The High-speed mode can be used for a single material;
The Weight Of the mixture can be compensated by the operation of the last material;
Using High-precision,high-standard special sensors;
Intelligent Fault Alarm prompt, maintenance is more convenient;
High-speed synchronous discharge function, effectively prevent material blockage;
The Highly integrated modular design adopts CAN bus technology;
Modbus industry standard communication protocol, realizes the combination of the combination scale and the packaging machine interface;
Other functions and features of the same generation model;
For Viscous Materials, anti-stick measures such as 60° chassis and Teflon coating can be used.
Mechanical Characteristics And product characteristics:
Separate Upper Hoppers are used for a variety of mixed formula materials;
Adopt independent main vibration machine to control the feeding thickness of different materials respectively;
The Integral Chassis and middle seat enhance the rigidity and strength of the machine, making the weighing more accurate;
The Chassis And chute adopt compatible design. When weighing a single material, it can be replaced with a double-port unloading tray, which can be equipped with a double-packing machine;
The Unified Design standard and the mold making process make the interchangeability of each part stronger.
Thestable Aluminum shell structure makes the hopper run more stably and the readings are more accurate. The integral chassis and the middle seat enhance the strength of the machine, making the hopper's stabilization time shorter;
specifikimet:
model | ZLJ20-2.5L |
Code | A20-2-2 |
Target weight | 10-1000gram |
saktësi | X(0.5) |
Maximum speed | 65B/M (Mixed product) /100B/M Single product |
vëllim | 2.5L |
Touch screen | 10.4' |
Optional | Dimple Plate/Timing Hopper/Printer/Reject Device |
Modaliteti i drejtimit | Step motor |
pushtet | 220V/2000W/50/60HZ 16A |
Packing dimension | 1920*1650*1620 |
Pesha e makinës | 850kg |
